Library & Learning Centre

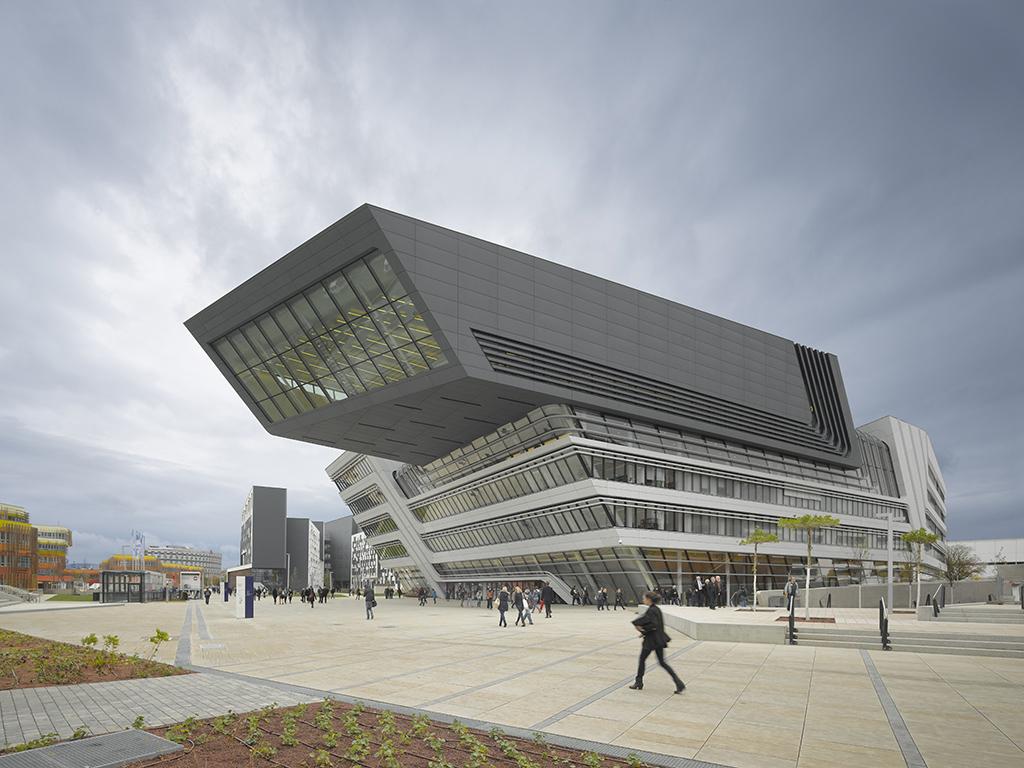

The new Library and Learning Centre rises as a polygonal block from the heart of the new University campus. The interior of the LLC is informed by the external landscape of the masterplan which maps out the different levels.

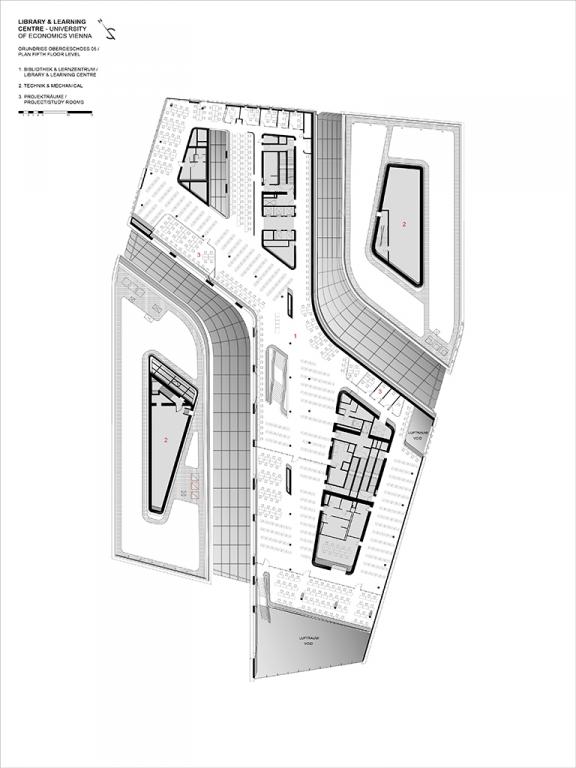

Functional plan: The aim of the functional plan is to clearly define the different areas of the building. The plan is translated into a three dimensional object which outlines the space around the central atrium, the corridors and the canyons. The main block of the building houses the Service Area, the Learning Centre and the Economics Library, with Student Services and Library Management located in the smaller block. While the interior edges of the site join together in a flowing free-form, the exterior edges of the building are cut sharply and their alignment contrasts with the site edges specified on the master plan and with the position of the adjacent buildings.

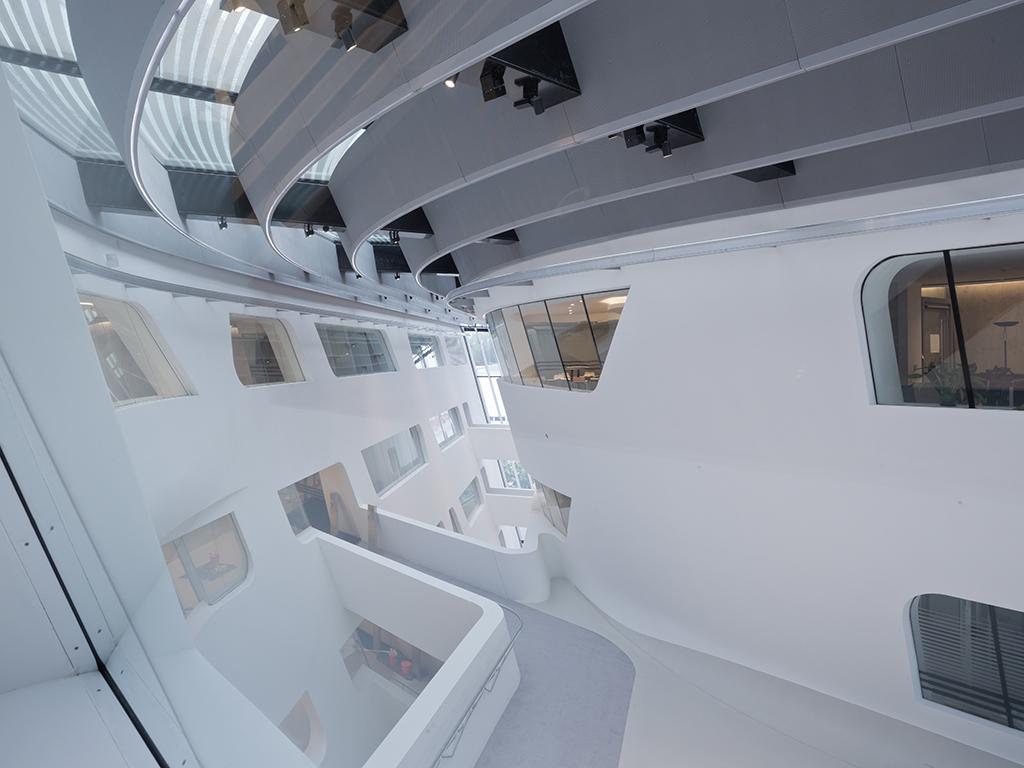

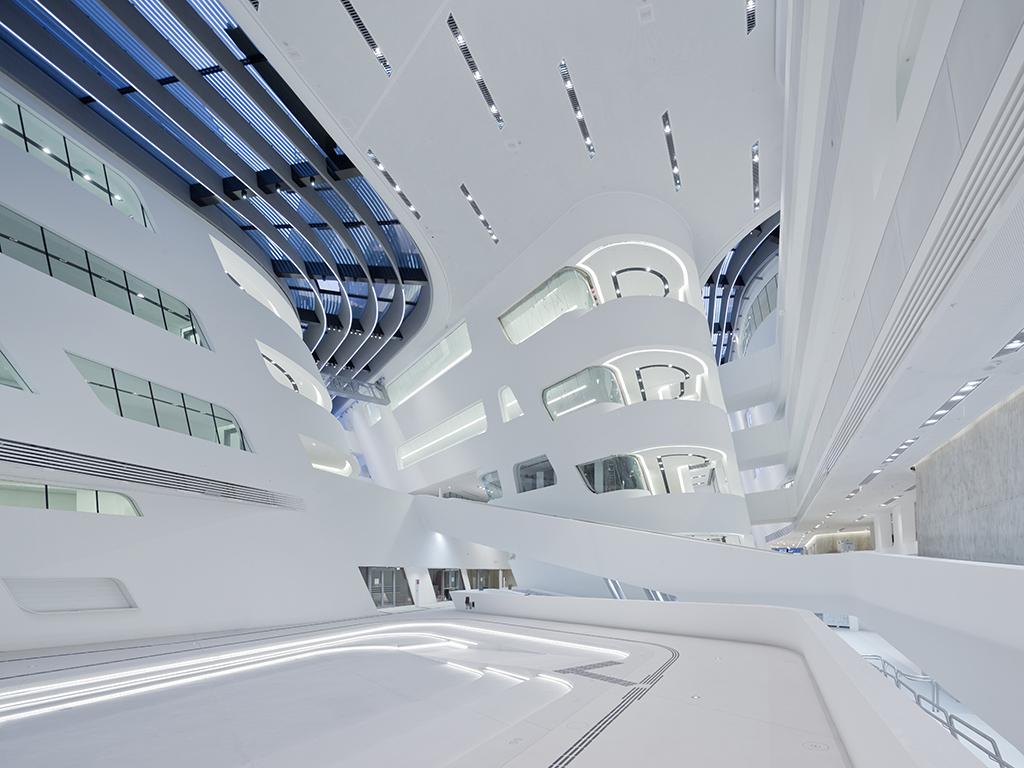

Internal circulation from the main entrance of the LLC, visitors can walk directly to the central auditorium which also functions as a large atrium flooded by natural light. A system of ramps leads from the auditorium to the library entrance and the central services on the first floor. The security and locker areas are located on the mezzanine below. Visitors can access the library and the student management offices via ramps and stairways spiralling upwards from the ground floor. The different areas on the upper levels are connected via platforms, bridges, terraces and galleries.

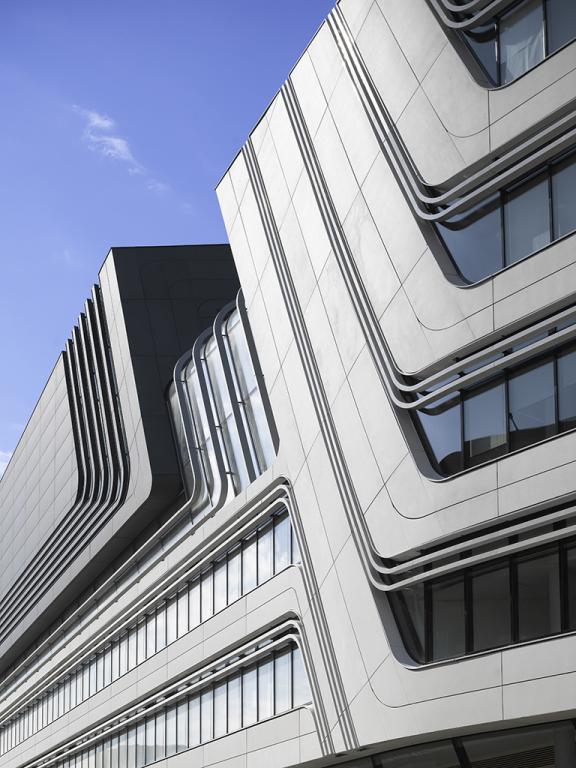

Façade: The external appearance of the LLC is characterized by two elements of contrasting colours separated by a glass joint: shell and shadow. These different colours facilitate the orientation and understanding of the two primary areas of the building from the exterior.
Sustainability use of groundwater for the production of energy as well as for heating and cooling. The waste heat of the data centers is also used as energy resource for heating in the winter season.
Groundwater is used for the toilets. A further reduction was achieved due to the use of waterless urinals and the use of water saving mountings.
LED lights are used in nearly all corridors and all the lightning in office rooms are controlled by presence and daylight detectors.
All air handling units are equipped with high efficient energy recovery systems.
Reversibility: all partitions allow for different space configurations.
Site area: 7,650 m²
