The Lantern

Site

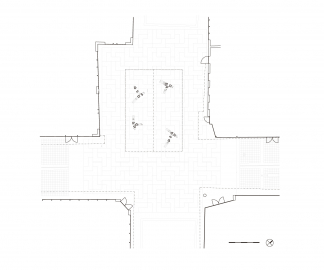

When Sandnes and Stavanger were chosen as cultural capitals of Europe 2008, a group of competitions named Norwegian Wood was launched to promote contemporary, sustainable timber architecture. Sandnes city asked for a construction that could serve as a canopy over a small square in the old pedestrian part of the city. A pavilion that could revitalize the square, and create a place where different types of activities could take place; a meeting point, markets, informal music concerts and other covered performances. Since the site is visible from afar, it was important to create an object that also could be experienced from distance.
The international competition was won by the Norwegian-French team Atelier Oslo/AWP. The winning proposal used the iconographic shape of and old wooden house. By the redefinition of its traditional construction and by making it glow in the dark, the aim was to create a new landmark for the city.
Roof

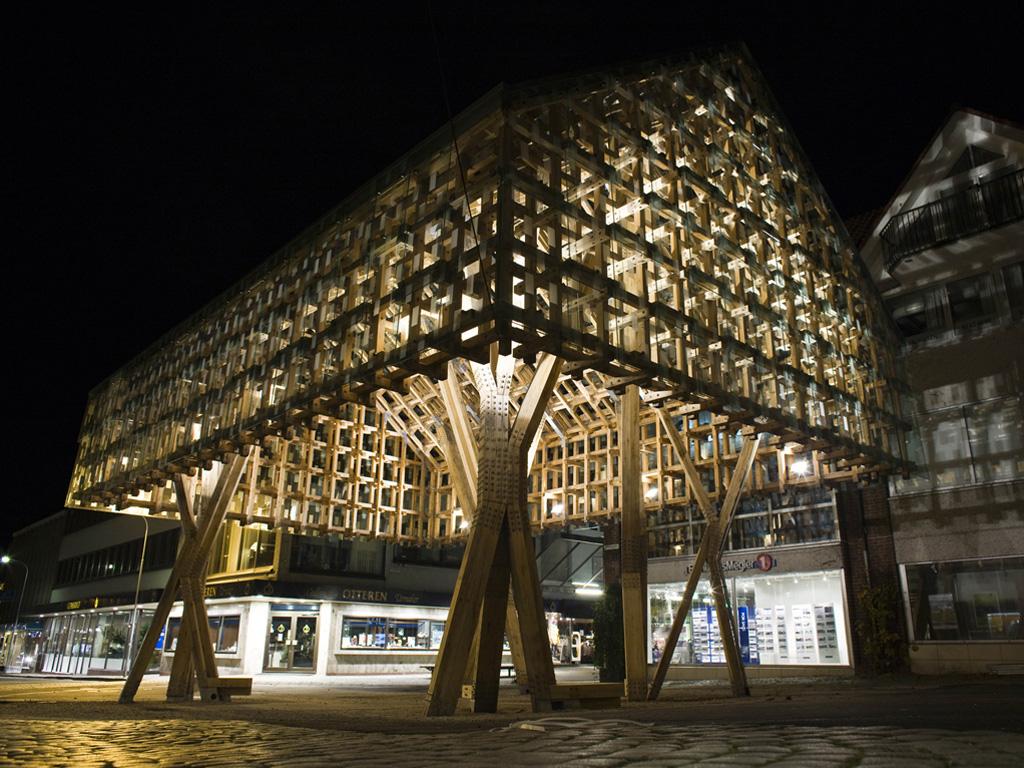

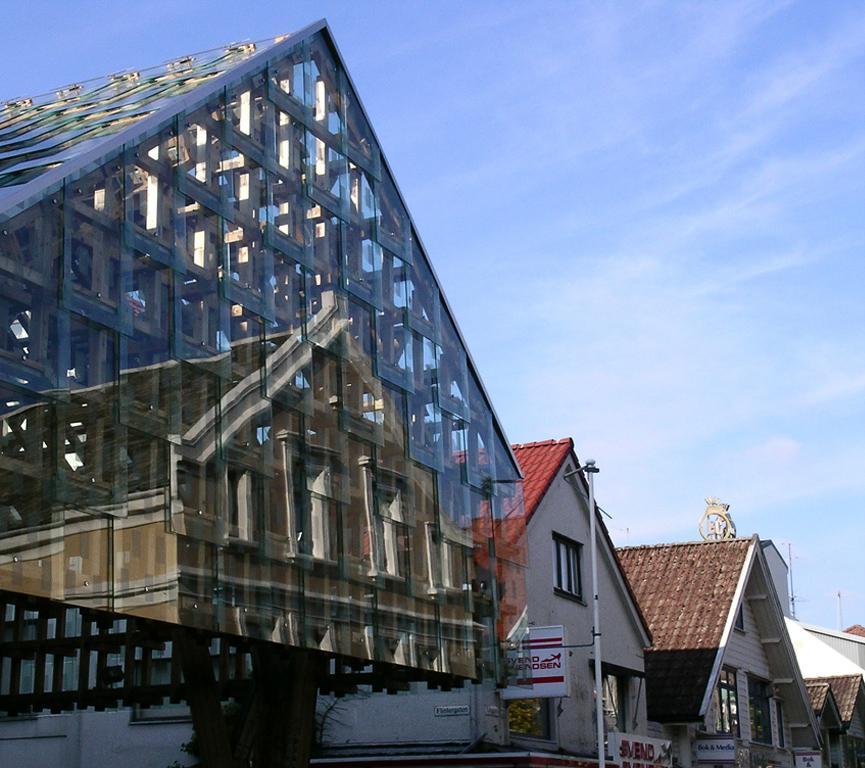

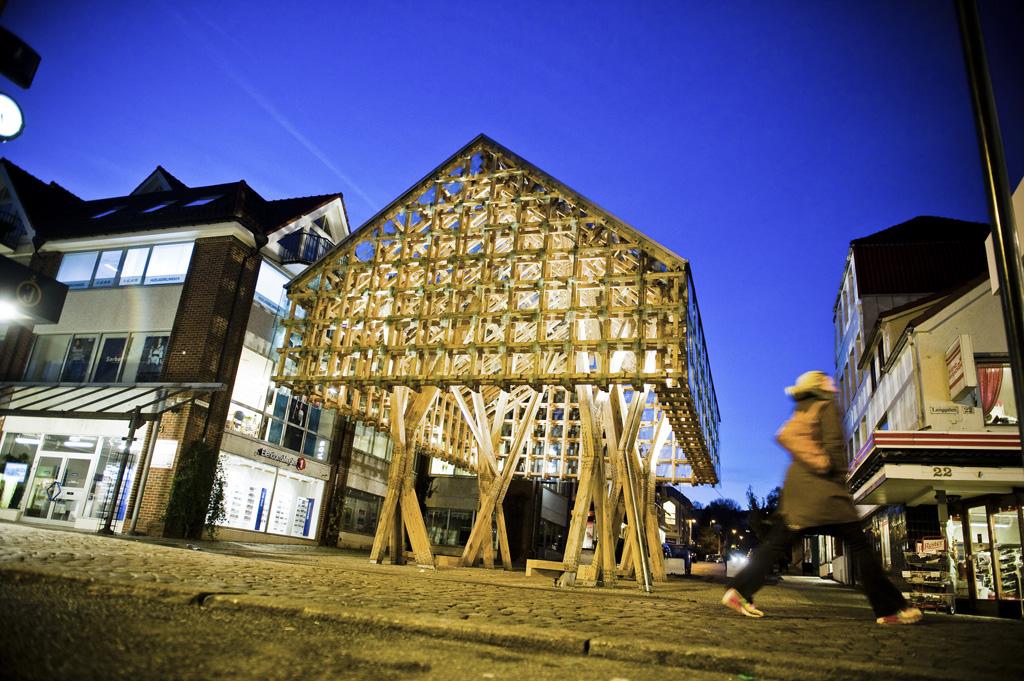

As well as having an iconographical and recognizable shape, the roof provides an ever changing experience for the daily passers by. The roof stretches out to capture the sun, light is filtered through the depth and translucency of the structure. In rainy weather rolling clouds are reflected in the glass. At night, the whole pavilion glows like a lantern.

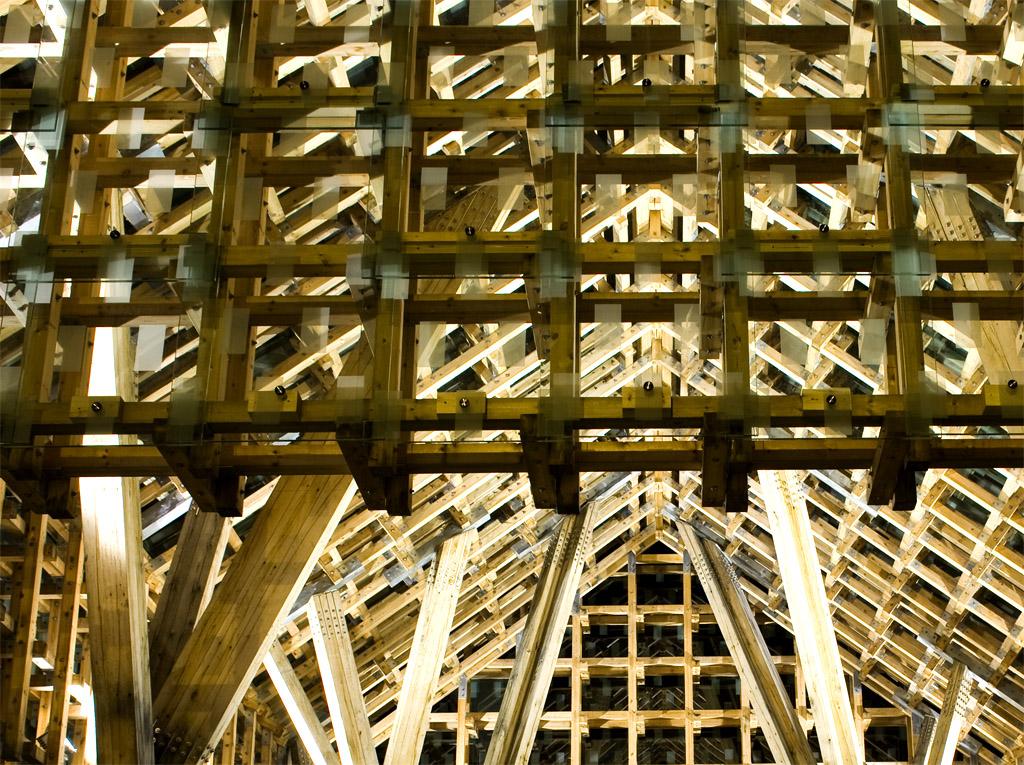

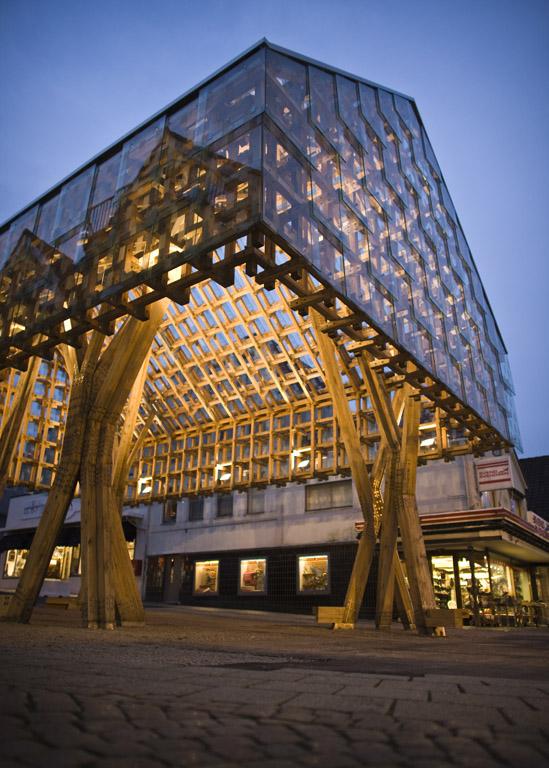

An abstract and lightweight sensation is achieved through the uniform structure, where there is no division between primary and secondary elements. It is a double grid made solely of 90x90mm wood members. Where needed, additional elements are added within the system. The material of the roof construction is laminated pine with steel reinforcement in the joints.

Glass

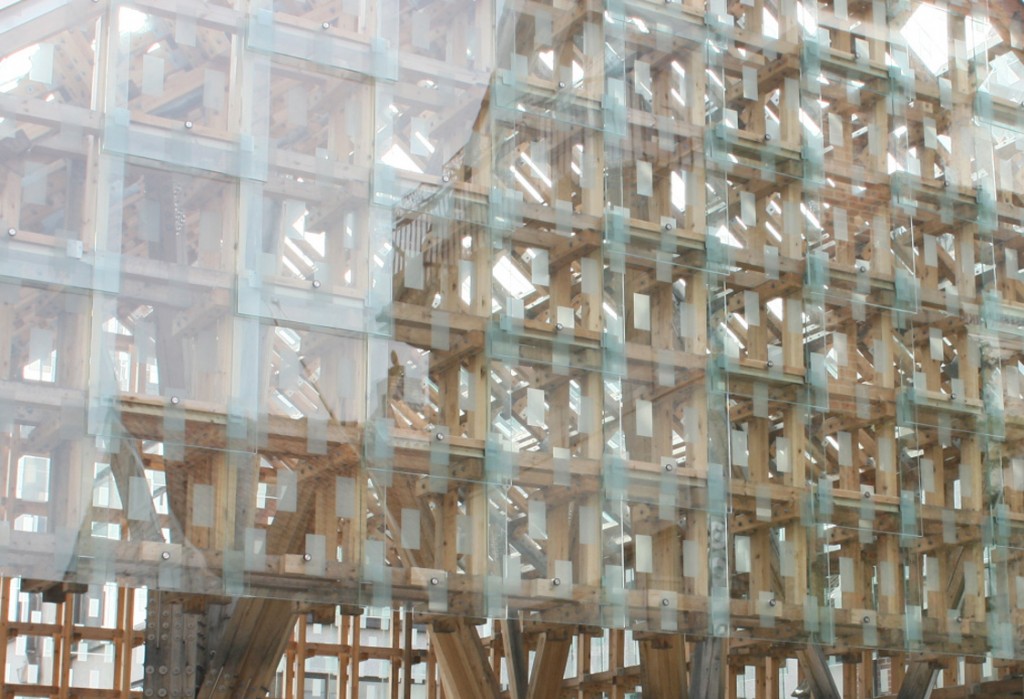

The glass panels are mounted in an overlapping pattern, as in a traditional slate roof.
The overlap incorporates eventual movement between the panels. This allows the glass to be mounted directly onto the wooden structure, avoiding the typical steel profiles and substructure. A translucent pattern is printed on the panels, to both capture the light, and let it through to play in the wooden structure beneath. A light, abstract feeling is achieved, adding to the depth and reflection qualities of the whole.

Columns

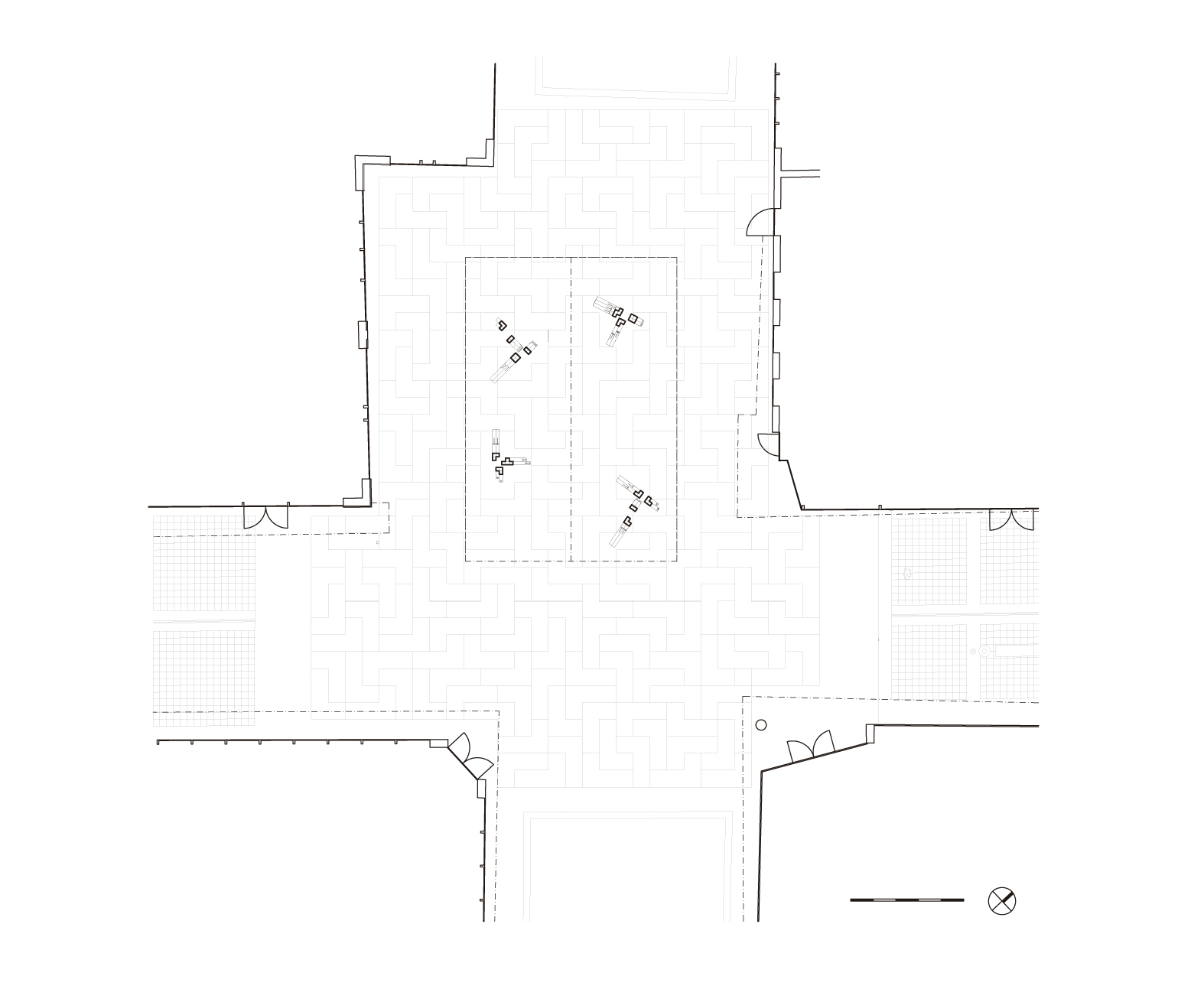

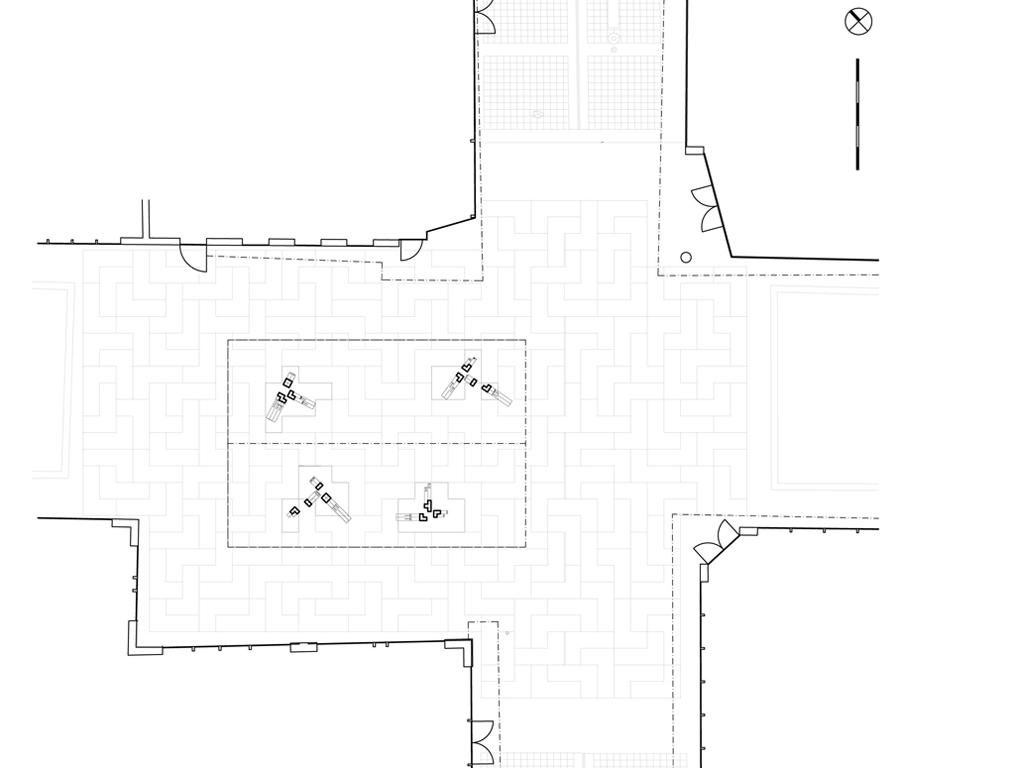

The roof is held up by four groups of columns, creating a flexible space, open for different interpretations and activities. The columns are individual and sculptural, and in contrast to the simple shape of the roof, create different informal spaces. In some places the columns turn into benches when meeting the ground. The columns are withdrawn from the edge of the roof, both to be protected from the rain, but also to blur the sensation of when the users are covered or not. With inspiration from gothic principles, the continuity of the structure is shown from the ground to the roof. Towards the roof the columns spread out to allocate the pressure of the roof, and towards the ground to stabilize the construction, distribute weight and secure lateral stability. The material is massive oak with steel reinforcement in the joints.
