Ankara Arena - Multi-Purpose Sports Hall

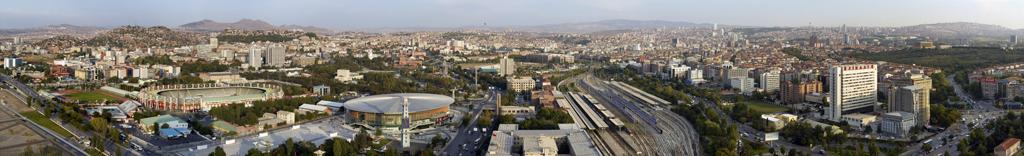

Ankara Arena -with 10.000 people capacity- is built on a 46.000sqm. land, which is defined as the second of a five-segmented region, being reserved for sports activities, in the master planning of Ankara. The 53.000sqm. building is in between historical buildings, such as the 1st.Turkish Parliament, the Parachute Tower, the Railway Station and the stadium. Being at the center of the old city of Ankara, it is designed considering the particularities of this special context and its urban life.
Firstly, a relationship was sought between surrounding regions by implementing an urban plaza as a meeting point and an event space all around the eliptical building, functioning together with Railway Station, stadium and youth park plazas. In addition, a pedestrian axis -surrounded by trees on sides- is designed for a relationship between zone1, which harbors the Ataturk Cultural Center, and zone3, which harbors the Youth Entertainment Park. The building is a place with no boundaries, like fences or gates. Unlike typical sports halls that become a vacant place in times when there is not any sport activity taking place, Ankara Arena is part of a living city with its plazas and walkways. It is possible to access the place through public transport, like metro, bus or train. The number of car parking is put to minimum in order to enhance arrival through walking and public transport.

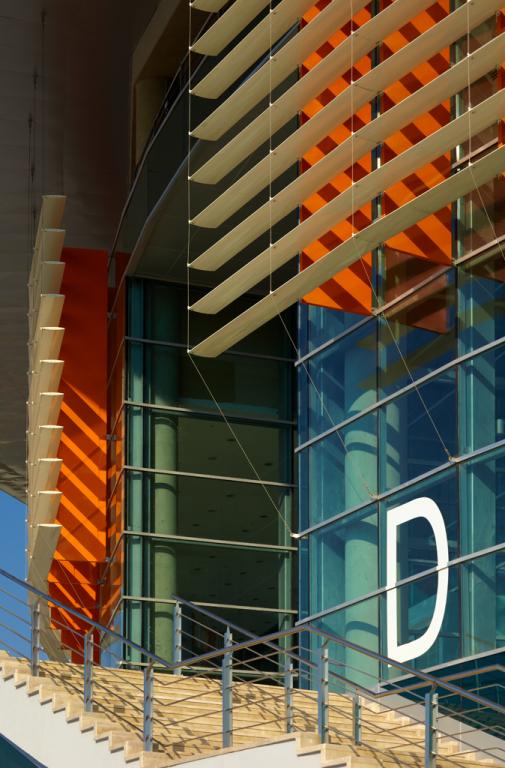

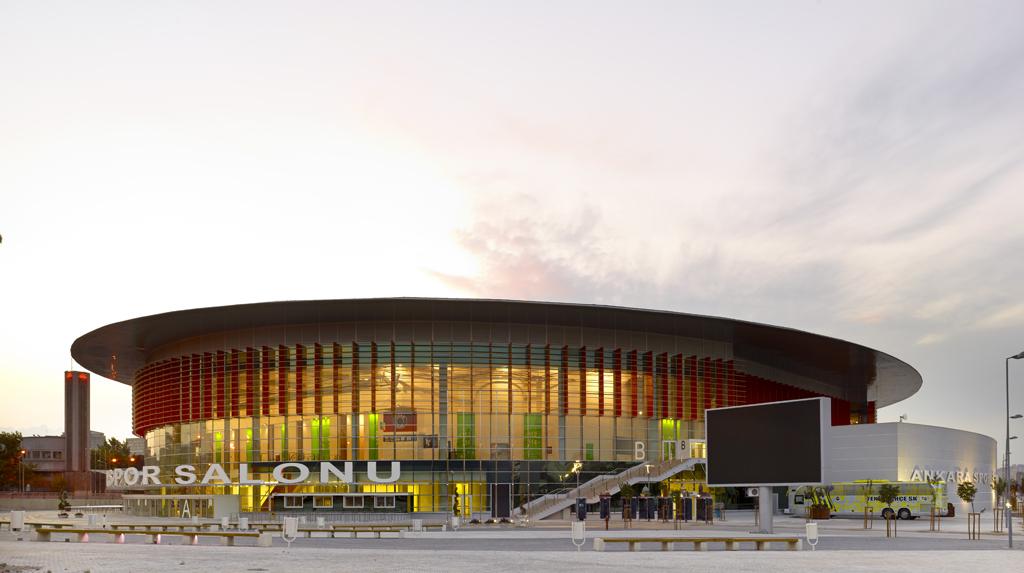

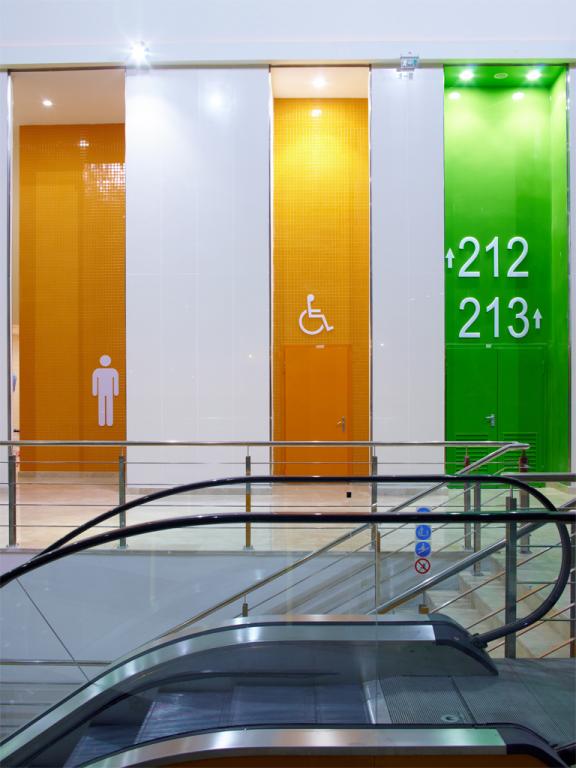

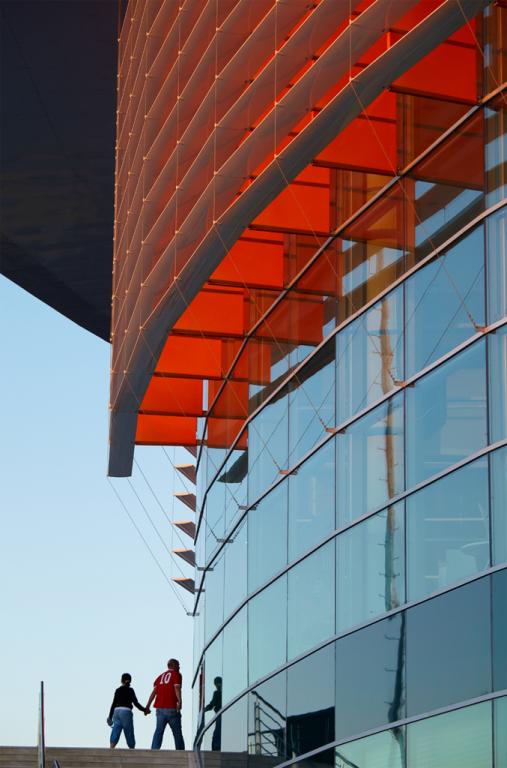

Secondly, rather than accomplishing an introverted typology, an extraverted design was considered. A transparent façade and terraces on certain levels were designed in order to render inhabitants develop visual relationships with the city in every direction. Diverse architectural elements, being put layer by layer from outside to the inside, such as tension rods, white horizontal sunshades, orange vertical sunshades, curtain wall, brut concrete columns, white foyer walls, green colored entrances, orange public toilet walls, increase the depth of view from the outside to the foyer walls at the back. Sunshades not only bring depth of view; but also give color and rhythm to the façade.
The buildings volumetric effect is decreased not only through the transparent façade, but also through rendering 15m. cantilevered eave structure thinner, like the wing of an aircraft. The eaves have depth only of 12cm. on the front. They become 7.5m. at the center in order to carry the giant screen.

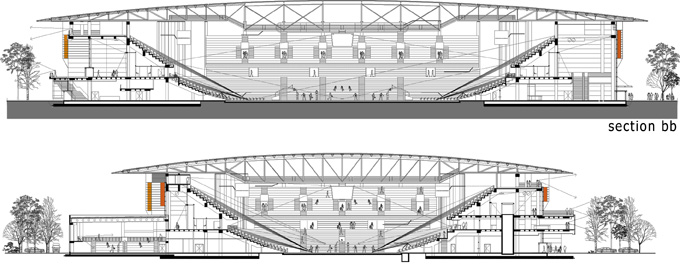

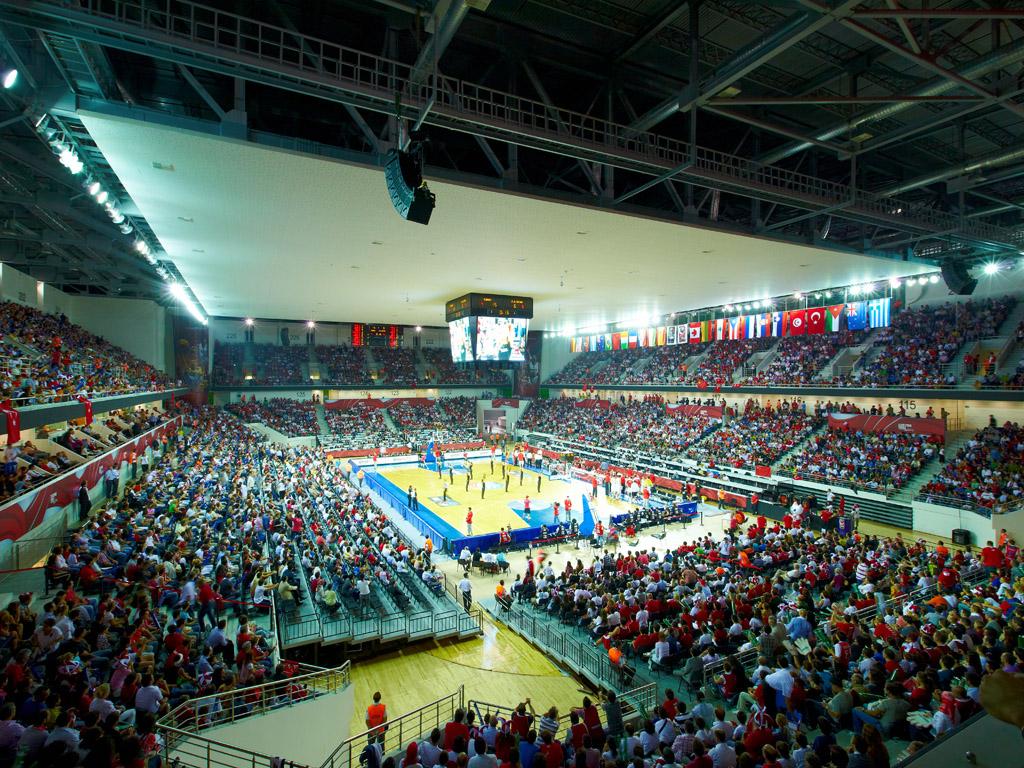

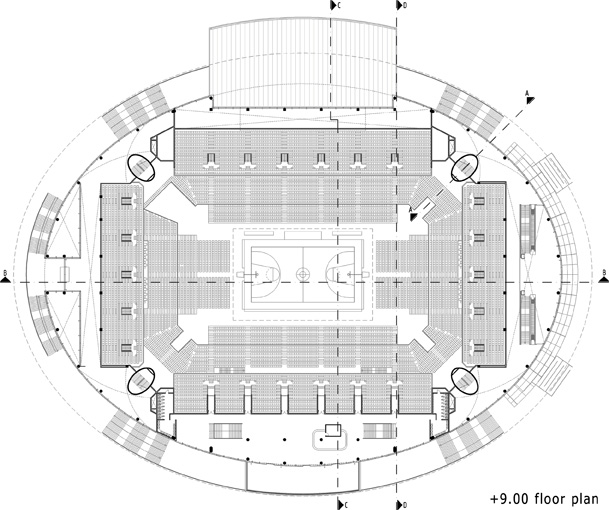

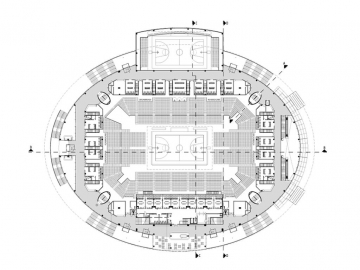

Although the building is designed mainly for sports activities, such as, basketball, volleyball, tennis, ice hockey, boxing, etc., it can harbor such cultural activities like concerts and congresses. It meets all the design criteria put out by FIBA(International Basketball Federation). Furthermore, it follows universal design principles; disabled and elderly people, and families with children can easily access and circulate throughout the building. There are private lodges and facilities for the disabled. The tribunes are designed with parabolic sections in order to develop an equal angle of vision for every audience. A significant landscape planning was developed, with a considerable amount of tree, for not only the area itself, but also the surrounding approach routes.
